New Design Car Starting Sodium Ion Battery 12.4V 80Ah with Grade A SIB Cells in DIN H7
New Design Car Starting Sodium Ion Battery 12.4V 80Ah with Grade A SIB Cells in DIN H7
Regular price
$170.00 USD
Regular price
$170.00 USD
Sale price
$170.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
12.4V70Ah Sodium-ion Battery For Car Starting
New Product
SODIUM-IRON TECHNICAL SPECIFICATION
|
No.
|
Items
|
Specification description
|
|
3.1
|
Appearance
|
The surface is clear and is free of scratch, mechanical cuts and match well with the host.
|
|
3.2
|
Max. Charge voltage
|
15.8V ±0.2(3.95V*4)
|
|
3.3
|
Nominal voltage
|
12.4V
|
|
3.4
|
Nominal capacity
|
80Ah（at 0.5C rate discharge after standard charge）
|
|
3.5
|
Specific Energy
|
992Wh
|
|
3.6
|
Standard Charge current
|
0.2C
|
|
3.7
|
Max. charge current
|
3C
|
|
3.8
|
CCA
|
Approx. 1600
|
|
3.9
|

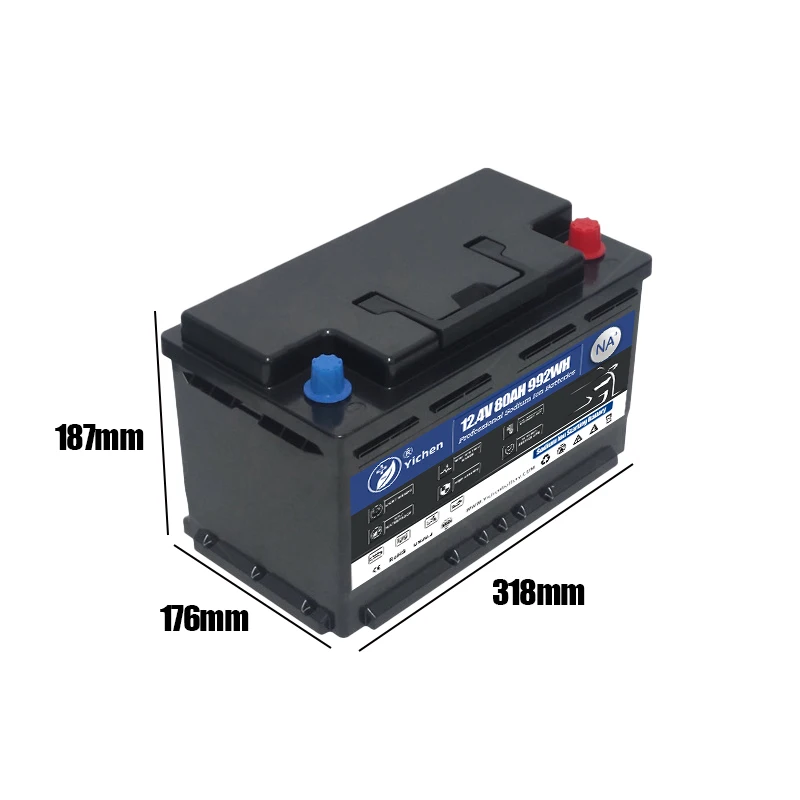

Outline(DIN H6)
|
L318×W176×H187 mm
|
|
3.10
|
Min. Discharge voltage
|
6V ±0.5(1.5V*4)
|
|
3.11
|
Discharge current
|
3C (Max. continuous discharge current)
|
|
600A (Peak discharge current)
|
||
|
3.12
|
Operating temperature
|
Charging: -10°C~45°C
Discharge: -50°C~200°C |
|
3.13
|
Storage Temperature and Humidity Range
|
The battery should cycle once in three months. Recommended storage temperature is 25±5°C of SOC 50%~60%.
|
|
3.14
|
Cycle Life
|
≥3000cycles,60% DOD
|
|
3.15
|
Pack weight
|
Approx.: 10.5KG±0.5
|
|
3.16
|
Delivery voltage
|
≥13V±0.5
|
Advantages
1: Wide voltage range, 6~15.8V, the perfect solution to the problem of lithium-ion battery voltage spikes and low-voltage
protection. So we don't have to add extra super capacitor;
2: Extremely low temperature performance below minus -40℃;
3: Very stable and safe, so low failure rate.
protection. So we don't have to add extra super capacitor;
2: Extremely low temperature performance below minus -40℃;
3: Very stable and safe, so low failure rate.
Why choose Yichen Sodium lon Battery? 1. Sodium ion batteries have better safety performance. The internal resistance of sodium ion batteries isslightly higher than that of lithium batteries, resulting in less instantaneous heat generation and lowertemperature rise in safety tests such as short circuits. In the tests of all safety items such as overcharge.overdischarge, short circuit, acupuncture, extrusion, etc., no fire or explosion was found in the sodium ionbattery. 2. Na ion batteries have better high and low temperature performance. The high temperature dischargecapacity (55°C and 80°C) exceeds 100% of the rated capacity, and the low temperature -40°C dischargecapacity exceeds 70% of the rated capacity. And it can realize 0.1C charging and discharging at lowtemperature -20°C, and its charging and discharging efficiency is close to 100%, which has better lowtemperature charging performance than lithium batteries.
3.Na ion batteries have better rate performance. The Stokes diameter of sodium ions is smaller than thatof lithium ions, and the electrolyte with the same concentration has higher ionic conductivity than lithiumsalt electrolytes. The solvation energy
Very Popular in Starter Motor
1. Wide voltage range, 6~15.8V, perfectly solve the problem of voltage spikes and low voltage protection of lithium-ion batteries.
2: Extremely low temperature performance below minus 30 degrees.
3: Very low failure rate.

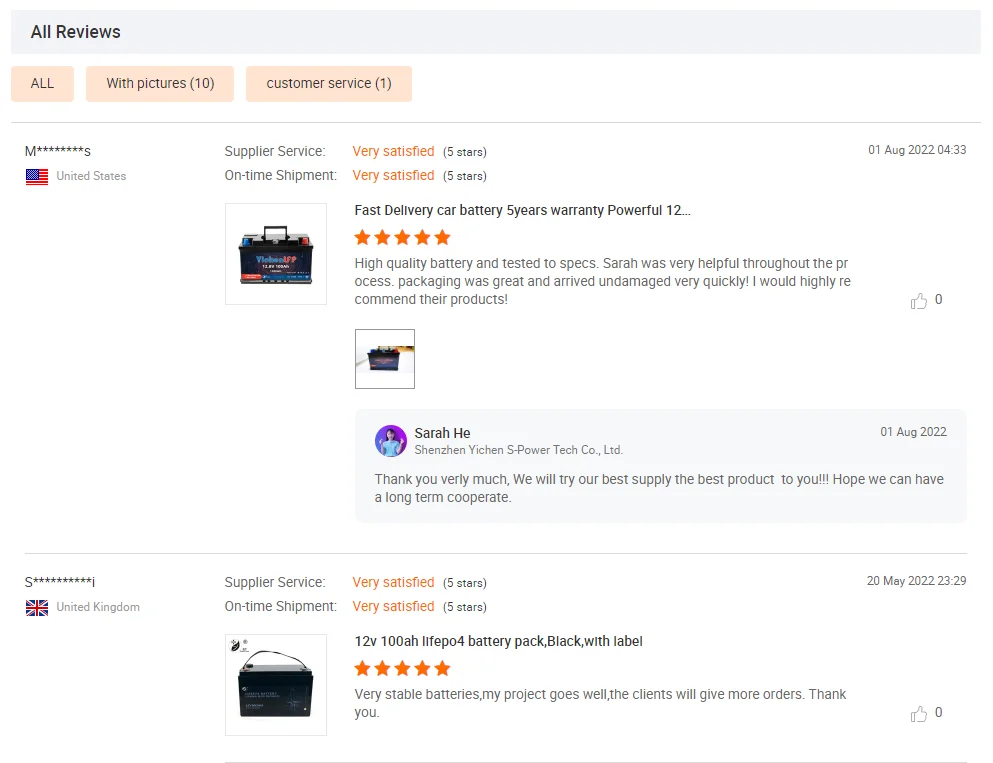

100% Real Transaction Records and Customer Feedback
Business Cooperation
Our customer feedback is very good, Starting batteries and Energy storage batteries are our main advantages. In addition, the potential of new energy is very promising. So we are looking for the agents and warehouses all over the world. If you are interested in working with us, please enter the command in the message: Cooperation.
Certification support
About production:
1. Our current production capacity is about 5300KWH / Month ( ≈ { 48V 100Ah } * 1000pcs / Month ) . If your monthly demand exceeds 5300KWH and you need our production , Please contact our salesperson three months in advance.
2. We are a medium-sized battery manufacturer . In addition to samples , the customization of individual products required by individuals will lead to very high
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
About US
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system, offer global technical support, Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS / Bt App / Rs485 / Rs232 / solution, and developed battery self-heating and Self-cooling(Water cooling). Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power. These products are used on Solar, Home storage battery, UPS, AGV, RVcar, Telecom Base Station, Golf Trolley Cart, Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
Our Workshop & equipment
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product, 2~5 days; For customized product, 3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system, Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity, high performance battery packs for 12v / 24v / 48v / 80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V / 460V / 614V Aircraft tractors, heavy truck, Mine train,110v / 220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes, welcome!
Q5: What is the lead time for the mass order?
Generally speaking, about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal, Western union, Escrow; and Mass order by T/T.
Q7: What kind of certificate can offer?
CE, RoHS, UN38.3, MSDS, etc, If need IEC-62133, PSE and others, please consult with us.
